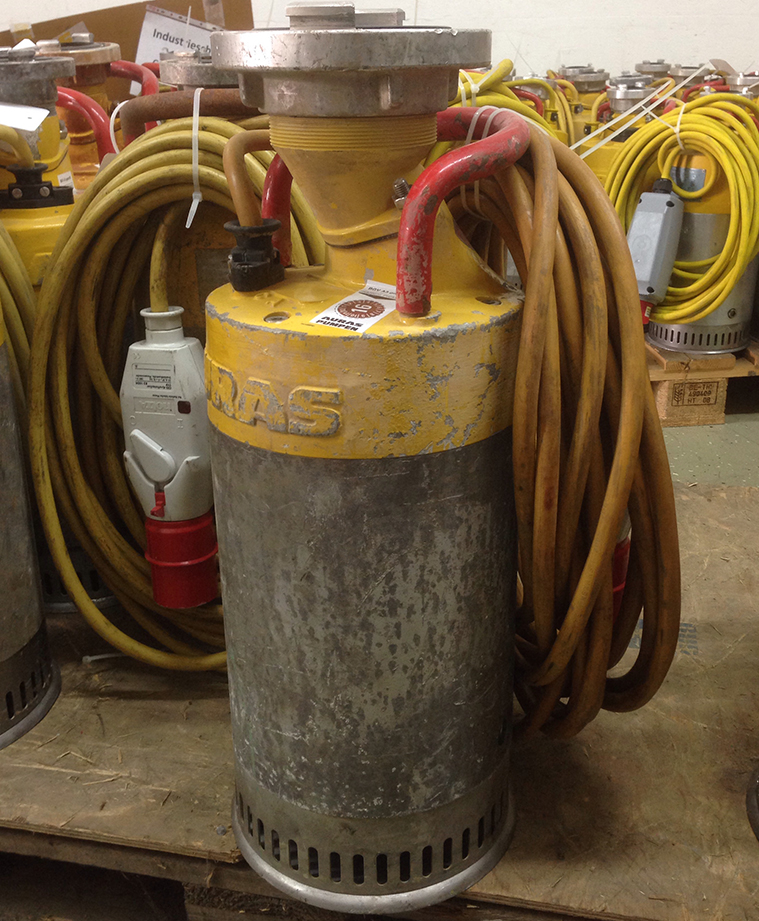

P 40 ND – Bj. 07/2002
Medium to be pumped | Dirty water |
Maximum discharge flow | 1.920 l/min |
Maximum discharge head | 17 m |
Maximum immersion depth | 10 m |
Temperature of to medium be pumped | 0 - 35° C |
Hole-ø of strainer | 8 mm |
Switch-on point automatic | 310 mm |
Switch-off point automatic | 150 mm |
Weight | 44 kg |
Diameter | 246 mm |
Height | 620 mm |
Hose connections | A [ 4″] |
Impeller | Chromium Steel |
Nominal voltage | 400 V |
Frequency | 50 Hz |
Nominal current | 7,7 A |
Power input P1 | 4,7 kW |
Cable 15 m | 4 x 2,5 mm² |
Power connection | 32 A |
Oil | 10W-40 |
